Structural Support Beams

Beams threaded into an old house to carry floors and roof loads while walls and chimney breasts were opened up.

Red oxide painted steel beams installed at ceiling and roof level installed within an existing building

About this job

The support beams were surveyed and set out to suit the existing joists, walls and structural engineer’s specification.

The steel was fabricated and painted before delivery, then installed to the prepared bearings and support posts as the openings were formed.

[CONFIRM: project details, dates and client permission to publish]

What we did

  • Site measure off the engineer's details
  • Beams cut, drilled and painted in the workshop
  • Lifted in and bolted to padstones and columns
Structural Steel

More photos from this job

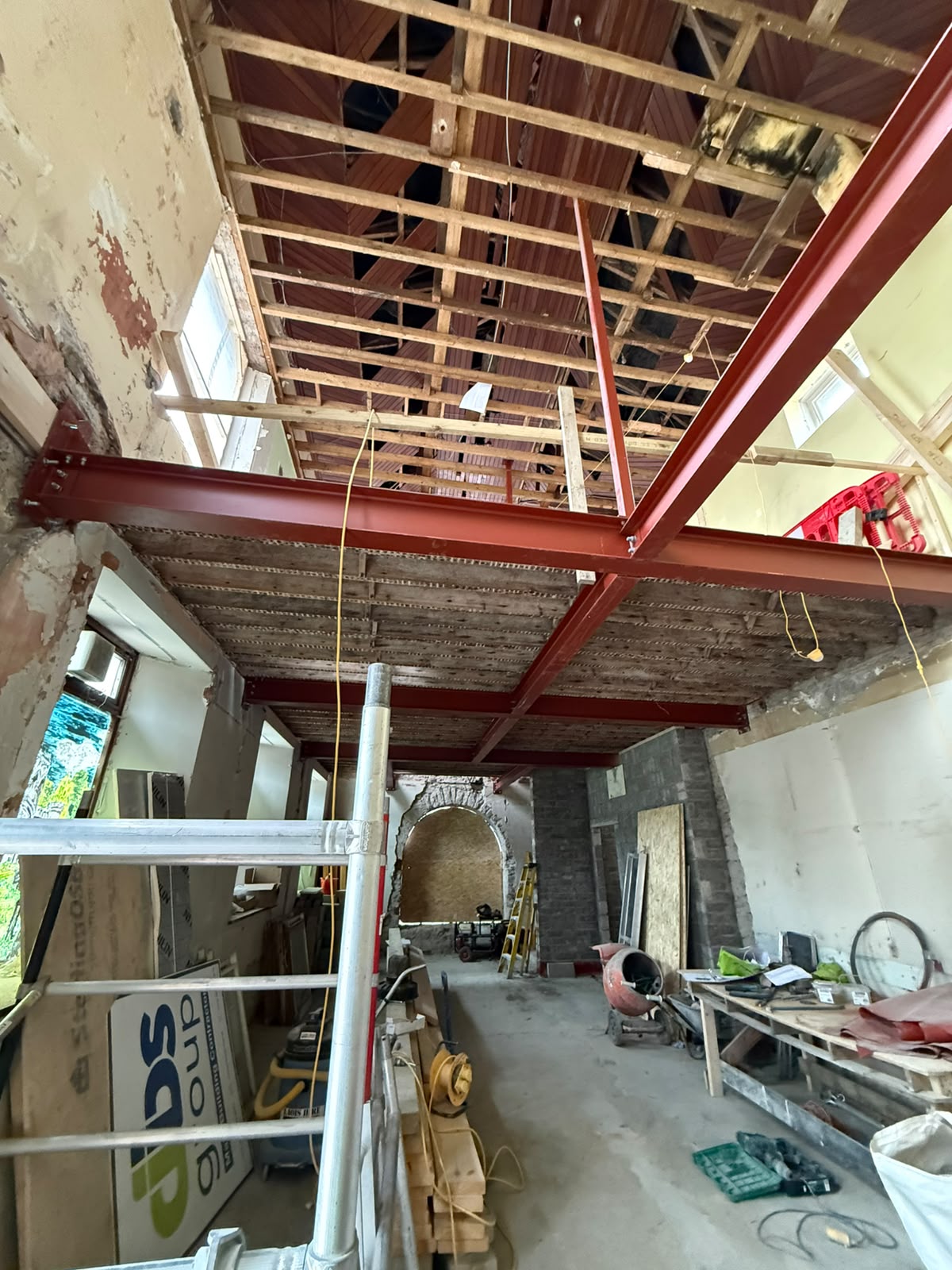

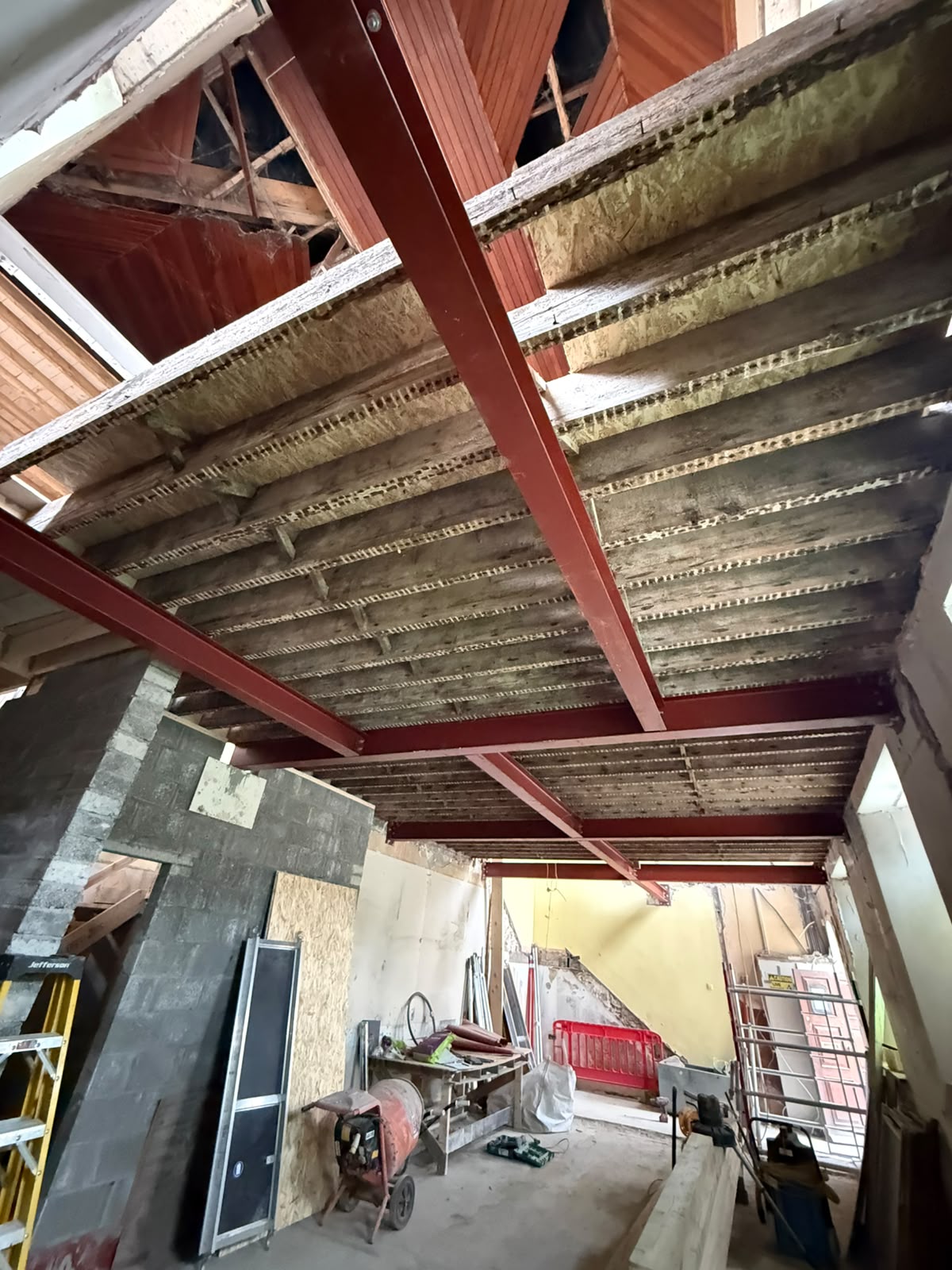

Red oxide steel beams carrying original timber joists and roof structure within an existing buildingSteel beams and posts framing an opening at ceiling level within an existing buildingSteel beams and posts supporting original floor joists in a renovated period building
